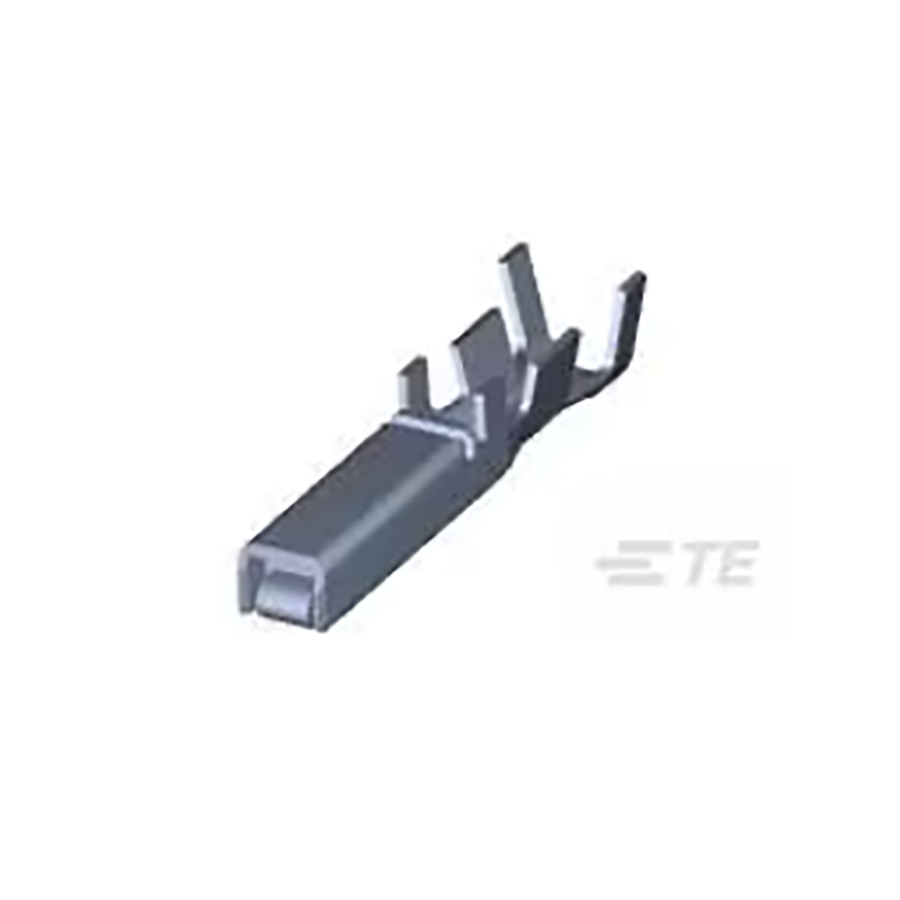

175196-2
Manufacturer:
TE Connectivity
Mfr.Part #:
175196-2
Datasheet:
Description:
Headers and Wire Housings Cable Socket
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Termination | Crimp |
| Max Operating Temperature | |
| Min Operating Temperature | |
| Height | 4 mm |
| Packaging | Reel |
| Depth | 4.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | |
| Number of Terminals | 1 |
| Max Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 20 AWG to 16 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 16 AWG |
| Insulation Diameter | 2.8 mm |
| Contact Gender | Female |
| Mating Post Length | |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 927
Distributors
pcbx
pcbxUnit Price$0.56098
Ext.Price$0.56098
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56098 | $0.56098 |
| 10 | $0.28049 | $2.80490 |
| 50 | $0.21576 | $10.78800 |
| 100 | $0.16597 | $16.59700 |
| 500 | $0.14688 | $73.44000 |
| 1000 | $0.12998 | $129.98000 |
| 3000 | $0.11574 | $347.22000 |
| 5000 | $0.10659 | $532.95000 |
| 10000 | $0.09816 | $981.60000 |
| 30000 | $0.09040 | $2712.00000 |
| 50000 | $0.08326 | $4163.00000 |
